5*8 Automatic Egg Tray Making Machine

Automatic egg tray making machine

1.  Designed capacity: 6500 pieces per hour; Economic capacity: 5500-6000 pieces per hour (30 caves egg flats tray, 70 GSM); the capacity vary as buyer’s workers operation skills and finished egg trays GSM

2.  Required factory workshop size for the line: length≥50m, width≥15m; workshop for egg tray molding machine: length≥20m, width≥15m, height≥5.0m, the finished products storage warehouse must be more than 300m²

3.  Egg tray production line's electricity consumption power is about 70% of the installation power due to our energy saving design; Working electricity: 380V/50Hz/3Phase(220V/415V/440V can be customized)

4.  Production line needed workers: 4-6 workers/shift, 2 shift per day (11 hours per shift, buyer should design the shift as their own needs)

5.  Automatic paper egg tray production line consists: 1) waste paper recycling paper pulping system 2) 5-8 automatic paper egg tray molding machine with aluminum egg tray forming molds 3) air compressor and vacuum system 4) multi-layer egg tray drying machine 5) diesel oil or natural gas burner 6) automatic egg tray collection stacker  7) automatic egg tray plastic film wrapping machine(optional)

Automatic paper egg box tray making machine characters

1) 2025 latest designed molding machine structure(optional), strengthen base make sure machine's good performance under high working speed.

2) Using energy saving motors, reduce the power consumption greatly

3) Egg tray forming machine pulp tanks, hoods, moulds installation template and main tube parts use Stainless steel material, has longer life span.

4) Bearing and gear boxes, mainly electric parts of our automatic egg tray making machine use World famous or China famous brands, guarantee the stable performance of the egg tray machine.

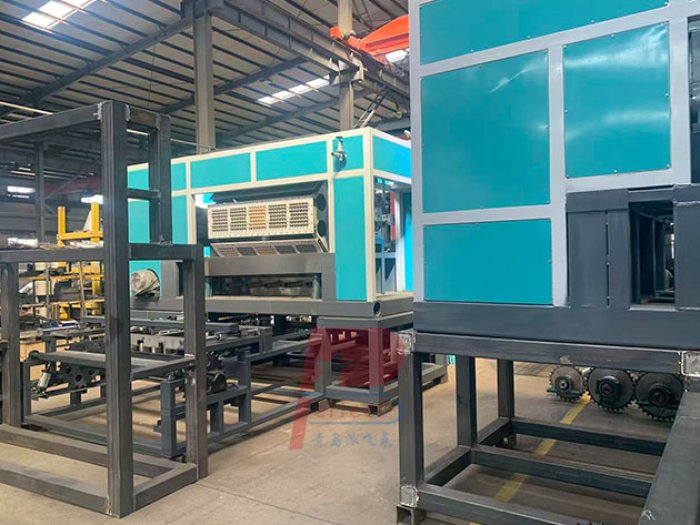

5) The metal dryer oven of our egg tray making machine is 3 layers insulation design, stainless steel material innner and outside covering plates , and middle is temperature keeping rock wool plate, total thickness is upto 150mm, has good drying performance, with 2025 latest design, easy to install and repair.

6) Multi-usage of the auto paper pulp egg tray molding machine, quick change the paper pulp tray forming molds to make difference shapes paper packing trays, max can make 7 cm height paper pulp trays.

7) Strength thickness egg tray molding machine frame, transfer molds installation template is designed stronger, make sure the molding machine life span is longer enough.

8) Egg tray making machine with automatic water sprayer to clean the molds during production, output egg trays less rough edge, the egg tray appearance and edges is more smooth and more beautiful.

9) Paper pulp making machine, egg tray molding machine use International famous brand driving motors and frequency convertor, ensure 24 hours continuous production.

10) Egg tray machine metal oven driver system use strength strong driving chain system, and pallets can running steady with big running speed of the egg tray production line.

11) Automatic egg tray making machine match with automatic brake driving motor, can stop the egg tray production line quickly, reduce the waste of the heat greatly.
