Our egg tray making machine and paper making machine are famous brands in China

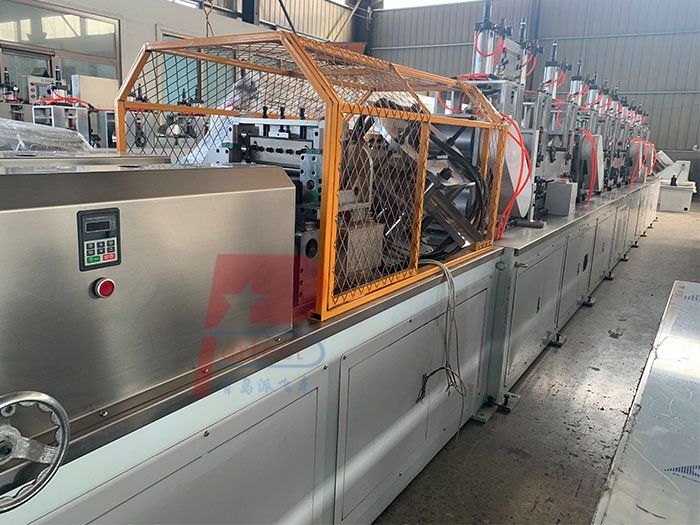

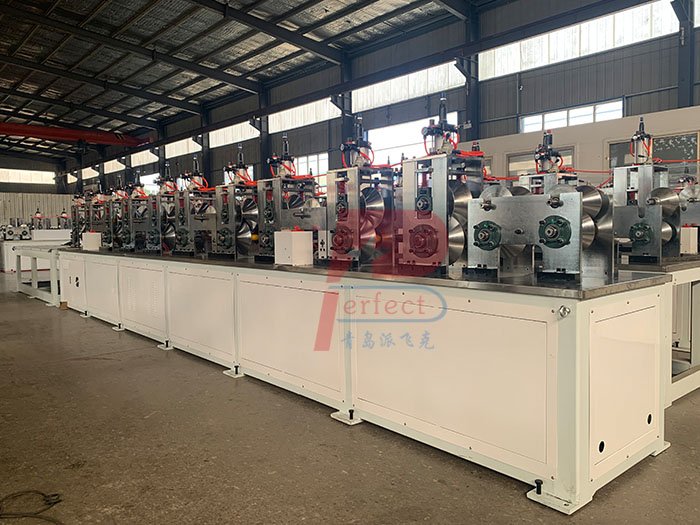

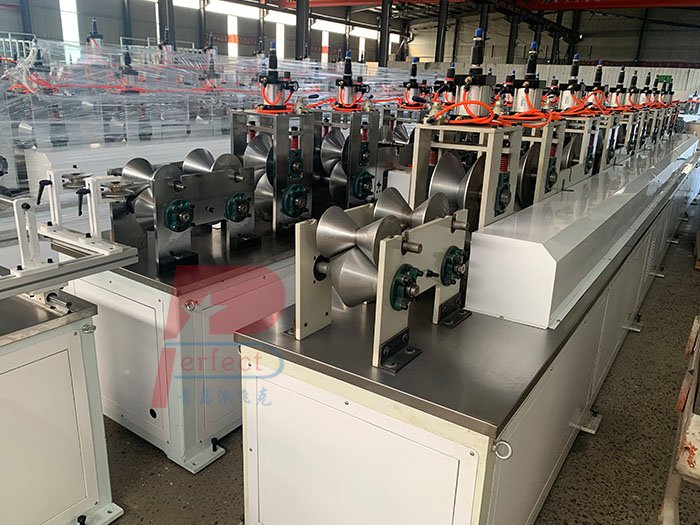

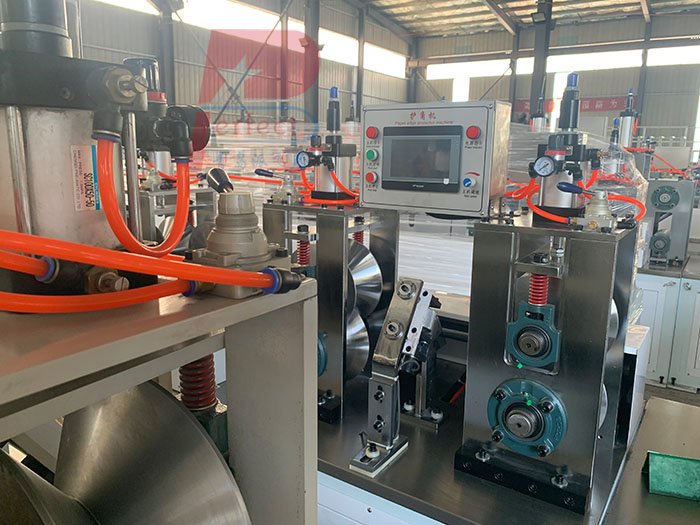

L shape craft paper protector corner making machine, CNC automatic control system, drive by one axle, all drive parts are thermal refined and surface hardened; Touch screen control and servo control system; Auto alarm system
Paper angle board protector corner sizes: 25-100mm (bigger sizes can be customized, U shape is optional)
Edge protector board thickness: 2.5-10mm
Working speed: 0-60 meters/min, economic speed: 55 meters/min
Cutting accuracy: 1000+-1mm
Max layers: 13
GSM of raw craft paper:surface paper: 150-220 gsm craft paper;
inner paper: 300-700gsm bobbin paper
Octagonal device: Ten groups wheels
Heating device : Four groups heating
Inline printing function: optional
Total power: 220V/380V/440V 50H-60Hz 3Phase 13.5kw
Total weight: about 5700kgs
Overall dimension: about 25500*1350*1700mm
Paper edge protector corners, also known as paper corner protectors or angle boards, are "L"-shaped profiles made from multiple layers of kraft paper and recycled paper, pressed and formed into a rigid structure. They serve multiple critical functions in packaging and logistics:
1. Protector edges and corners: This is their primary function. They provide excellent protection for the edges and corners of products—such as cartons, wooden crates, furniture, glass panels, and metal coils—during transit and storage, preventing damage from impact and crushing.
2. Reinforce packaging strength: When applied to the exterior of cartons and boxes, paper edge protectors significantly enhance the stacking strength (or top-to-bottom compression strength) of the package. This prevents boxes from collapsing under heavy loads, making them ideal for heavy products or high-stack storage.
3. Provide structural support and framing: In the packaging of items like furniture, doors, and windows, paper edge protectors can act as an internal skeleton or bracing frame. This helps to secure the product within the outer packaging, minimizing movement and potential damage.
4. Facilitate handling: They create uniform, sturdy edges for palletized loads, providing ideal clamping points for forklifts and other handling equipment. This improves operational efficiency and safety during loading and unloading.
5. Additional applications: They are also used as edge protection for decorative materials and can often replace wooden battens in many scenarios. As a 100% recyclable and biodegradable material, paper edge protector is an economical and environmentally friendly packaging solution.
Qingdao Perfect Equipment automatic craft paper angle board protector corner making machine already been exported to more than 30 countries includes Mexico Turkey India Pakistan Peru Vietnam etc, the inline printing function can be added onto angle board production line.
