Our egg tray making machine and paper making machine are famous brands in China

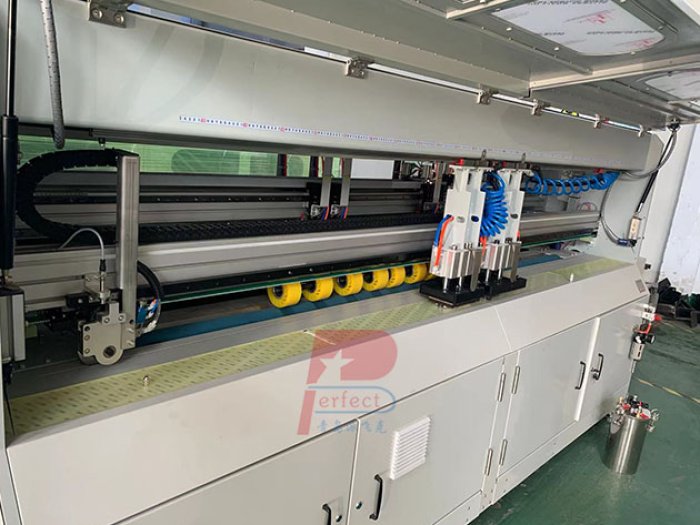

CNC digital control corrugated cardboard carton box making machine is a kind of carton production equipment, which integrates slotting, cutting, cross-cutting, and vertical and horizontal crimping, and fully automatic knife adjustment. It is mainly used for small batch and multi-style corrugated box bulk orders and urgent orders. Equipment has emerged in the European and American markets in recent years. The auto carton box making machine adopts the control method of servo motor and PLC+HMI, with a high degree of automation, and one person can complete the packaging carton box's production easily.
Advantages of Fully Automatic CNC rigid corrugated cardboard carton box making machine
1. The carton box machine comes with more than 150 types of carton boxes design, you only need to select the required box type on the HMI touch screen and enter the size to process the carton;
2. Changing orders can be completed within 10 seconds for different shape boxes with different sizes.

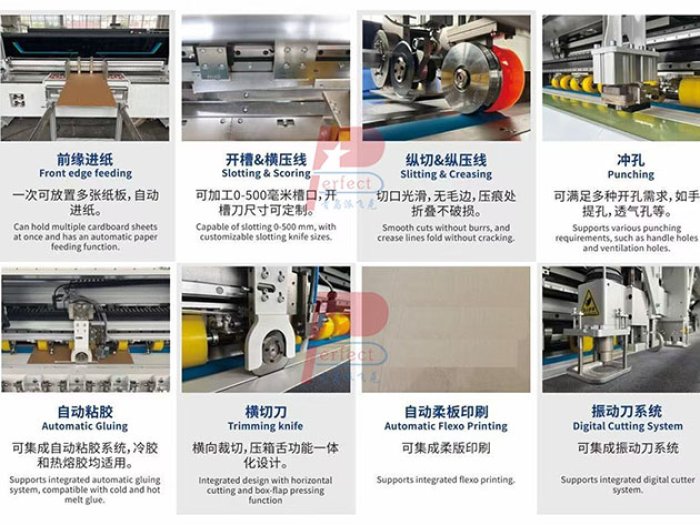

3.The single machine of the equipment integrates automatic paper feeding, slotting and threading, slitting and pressing, cross-cutting and trimming, and various functions such as portable holes can be used for carton production and cardboard slitting.
4. 2.5 meters max cardboard feed width, unlimited cardboard feeding length, as small as mobile phone boxes, as large as freezer boxes, and oversized furniture boxes.
5. One operator, no need die molds, quick orders change, widely application scope, multiple functions,labor saving.

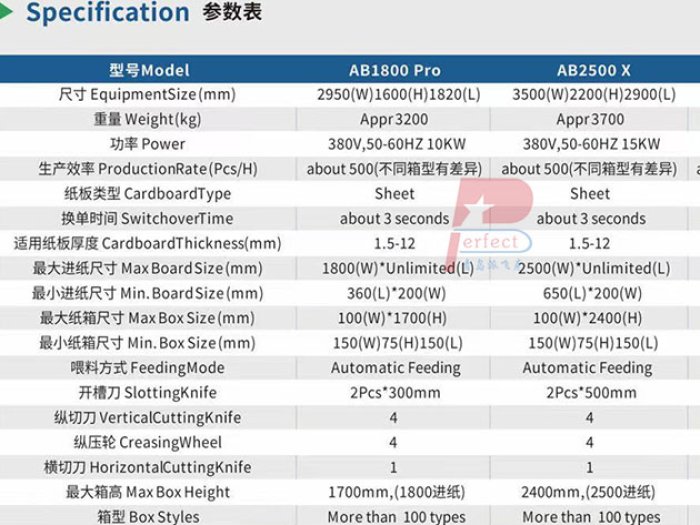

PFK-2500VB CNC automatic corrugated cardboard box making machine
Suitable for：Single or double wall corrugated cardboard
Cardboard thickness：2-12mm
Max weight of the cardboard： 1200GSM
Max feeding cardboard sizes： 2500mm width* infinite length
Min feeding cardboard sizes：200*650mm (W*L)
Order changing time：3-5 seconds
Processing boxes sizes: More than 100 types
Production capacity：500-800 pieces/hour (depends on boxes shapes and sizes)
Slotting blade: 2 pieces 500mm length（slotting width is 7mm, and length is adjustable）
Vertical cutting blade：4 pieces
Creasing wheel：4 pieces
Horizontal cutting blade： 1 piece
Air source pressure and air consumption：0.6-0.7Mpas 75L/Minute
Weight：About 3700 kgs
Working power： 380V 50Hz 3Phase 15KW
Machine sizes： 3500(W) * 2900（L）* 2200mm(H)
Vibration knife：2 Pieces
Cardboard feeding unit：Front lead edge automatic feeding by sheets
Optional functions: Punching/Gluing/Printing
Fully automatic corrugated cardboard carton box making machine producer
As our egg tray making machine, carton box cardboard machine, tissue paper machines exporting to more and more countries includes USA, Russia, Spain, Ukraine, Egypt, Nigeria, Saudi Arabia, India, Australia, Philippine, Mexico, Colombia, Argentina, our machines win good reputation both in China and abroad industrial paper packaging area due to good quality first class after sales service.
