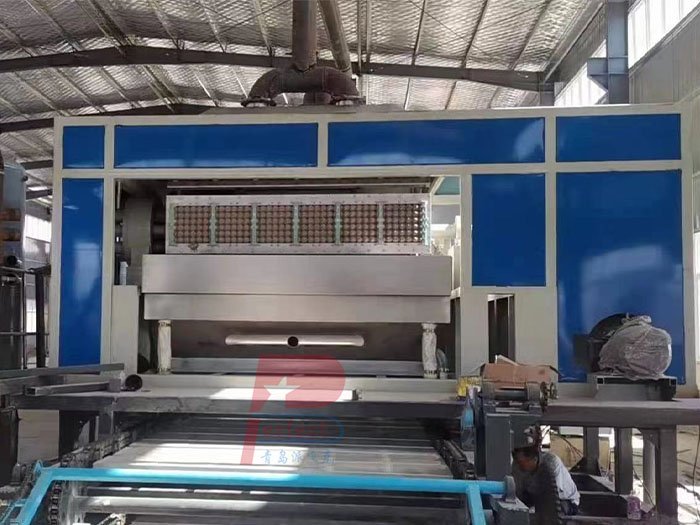

Automatic egg box tray making machine 6-8 model with aluminum egg tray forming molds in hot selling the most popular model egg tray machine in 2025, the egg tray production line cost is around USD140000 per plant, and the price is vary as client's required configurations and matched forming molds design for the egg tray molding machine.

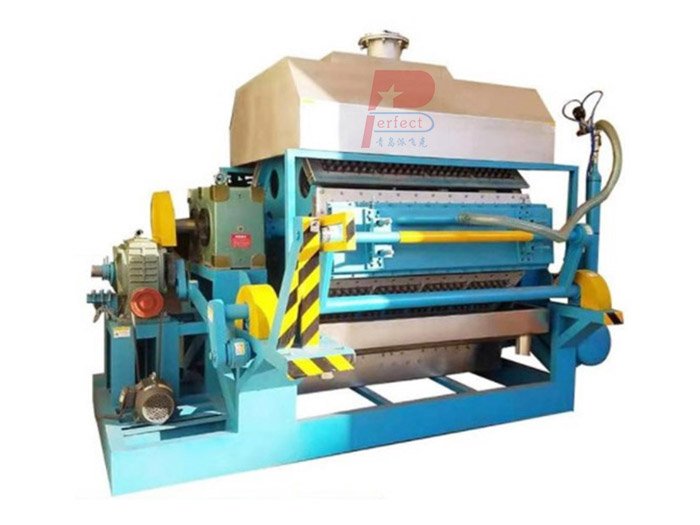

Paper pulp molding egg tray making machine producing egg box trays, the best choice for chicken egg transport packaging plates trays production solution, 7000 pieces per hour production capacity for 30 caves egg trays, and 5500-6000 pieces per hour capacity for 12 caves egg box trays
1. Egg tray making machine designed capacity: 7000 pieces per hour per hour; Economic capacity: 6000-7000 pieces per hour (30 caves egg tray, 80 GSM); the capacity vary as buyer’s workers operation skills and finished egg trays GSM
2. Egg tray production line required factory workshop size for the line: length≥50m, width≥15m; workshop for egg tray forming machine: length≥15m, width≥20m, height≥5.0m, the finished products storage warehouse must be more than 300m²
3. Egg tray making machine with metal oven dryer consumption details:
Egg Tray Machine Consumption per Hour | ||
Waste paper | A7000MA | 450-480kgs |
Water | A7000MA | 1300-1380kgs (recycled) |
Natural gas | A7000MA | 90-95 cube meters (reference) |
Installation Power | A7000MA | 245KW |
4. Egg tray production line’s electricity consumption power is about 70% of the installation power due to our energy saving design; Working electricity: 380V/50Hz/3Phase
5. Egg tray making plant needed workers: 4-6 persons/shift, 2 shift per day (11 hours per shift, buyer should design the shift as their own needs)

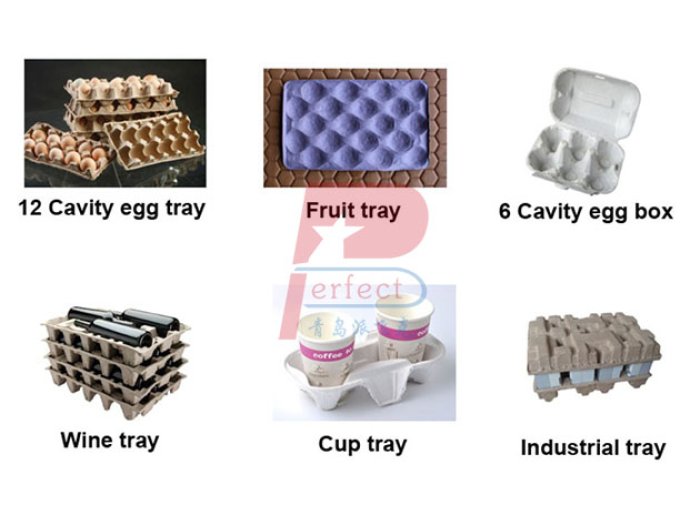

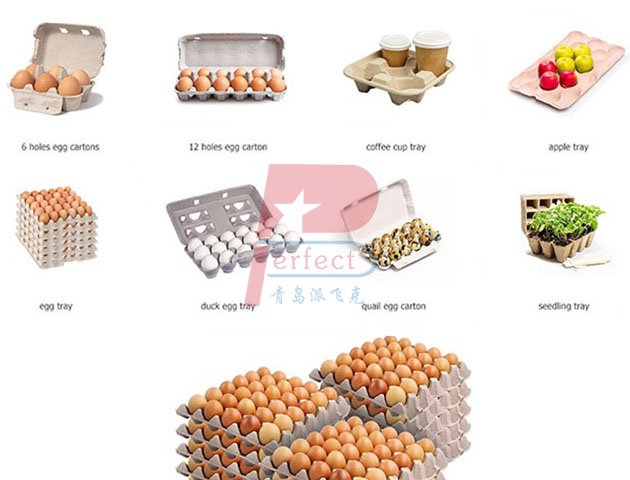

6. Egg tray production line is configured by 30-eggs tray as standard, if it is used to produce egg carton, fruit tray, coffee cup holder tray, etc, it needs auxiliary equipment, like hot press machine, sticker, or printing machine etc. Corresponding area, total power, worker quantity must be increased.
7. The water is recycled, but because it was waste water from beginning, it became dirty when it recycled several times, it needs to be changed. For water lacked area, it can install sewage disposal system for saving water cost.
8. How to make egg trays ? How to recycle waste paper old carton boxes into paper pulp packaging egg box trays ?

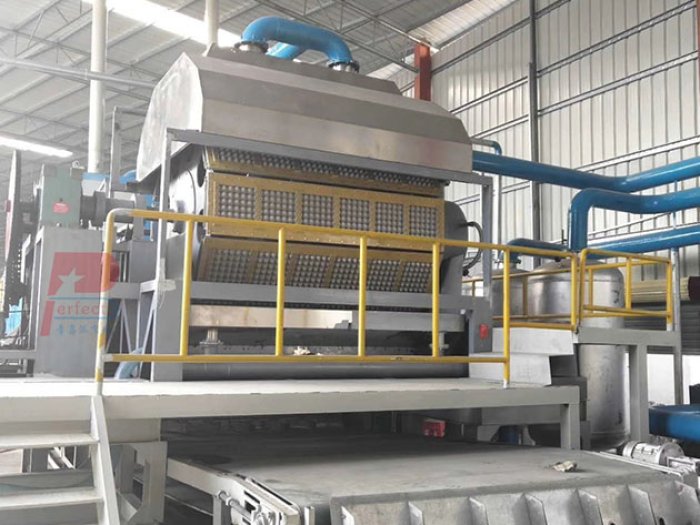

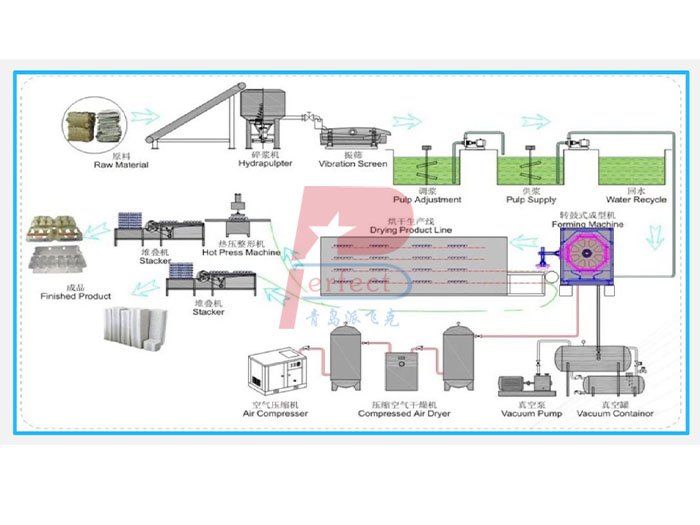

Put the raw waste paper old cardboard boxes into the hydra-pulper to be crushed, then use the pulp system to prepare a certain concentration of pulp required by the product. Then, the paper pulp is adsorbed onto the egg tray forming molds by pulp pump and adsorption molding system, then the egg trays molded on the egg tray forming machine molds is drained by a vacuum drying system. The wastewater generated during the process is returned to the pulp pools via the wastewater return system for recycling.

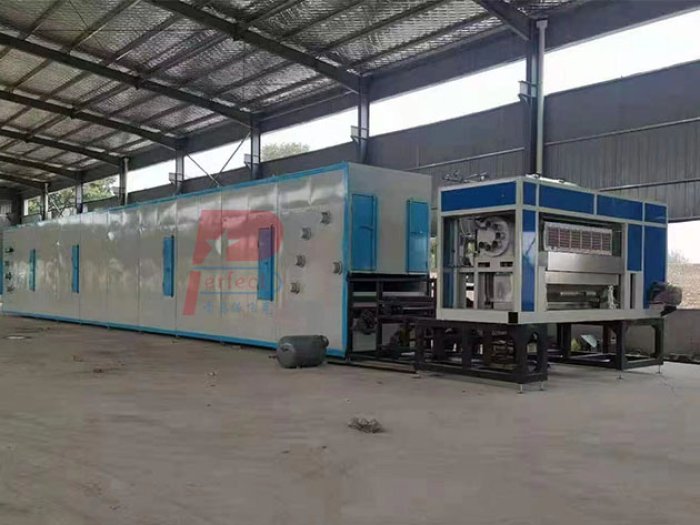

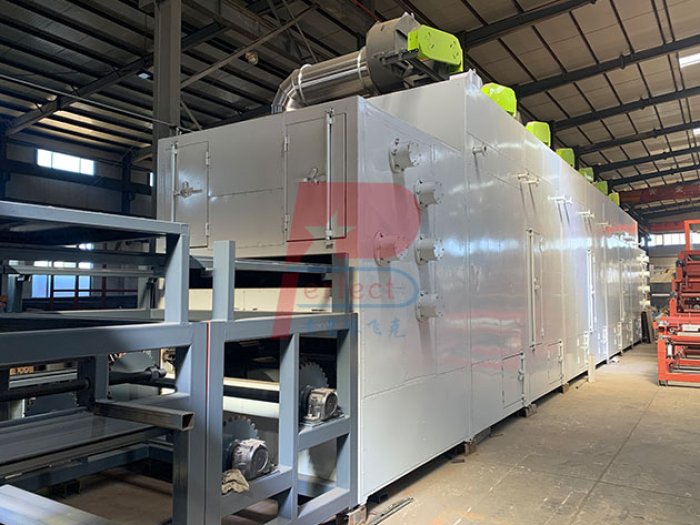

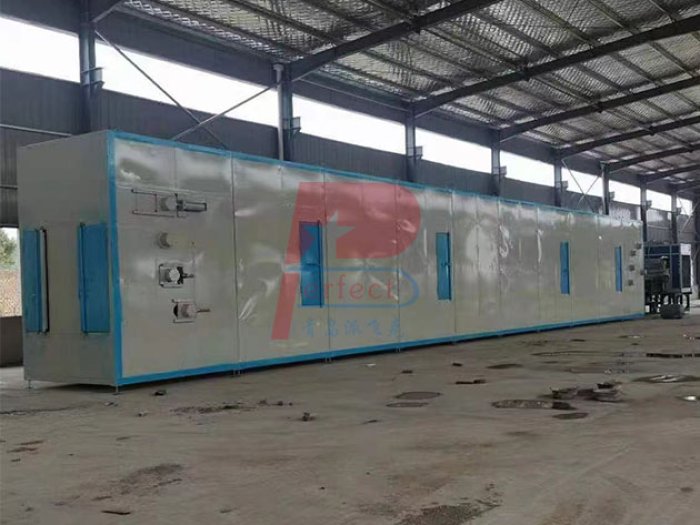

The dehydrated molded egg trays is transferred to the egg tray metal oven dryer through the egg tray molding machine's transfer molds; After drying, the finished egg trays or other paper pulp packaging trays are out of the drying system, then do quality checking and finally packaging of the bulk egg trays and stored for shipment; For the plastic packaging, buyer can also chose to match automatic plastic film wrapping machine for the egg tray production line.
