high speed crescent tissue paper making machine is a type of paper machine specifically designed for producing tissue paper, such as toilet paper and facial tissues. Its name comes from the crescent-shaped gap formed between the forming fabric (wire) and the felt (or clothing) as they wrap around the large drying cylinder (Yankee dryer) . This design is crucial for forming the paper web

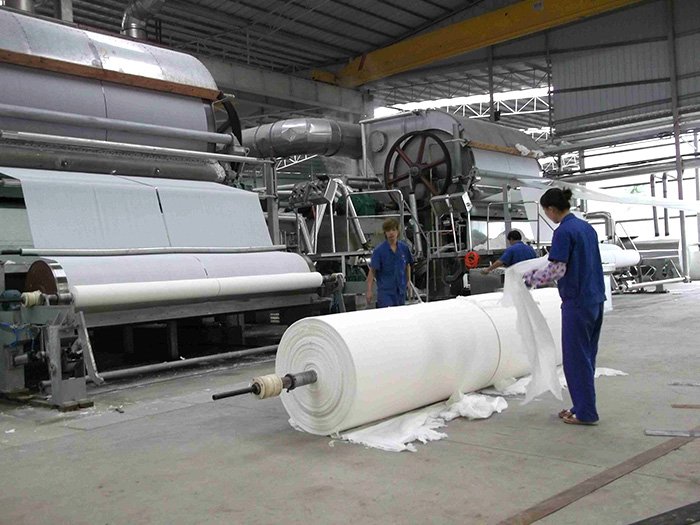

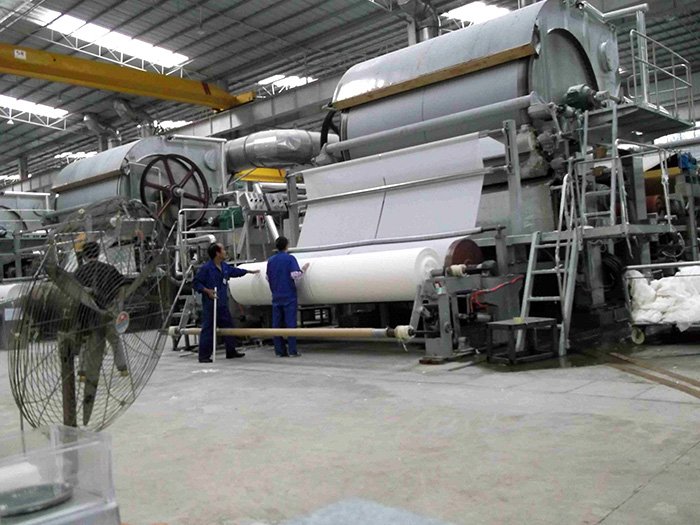

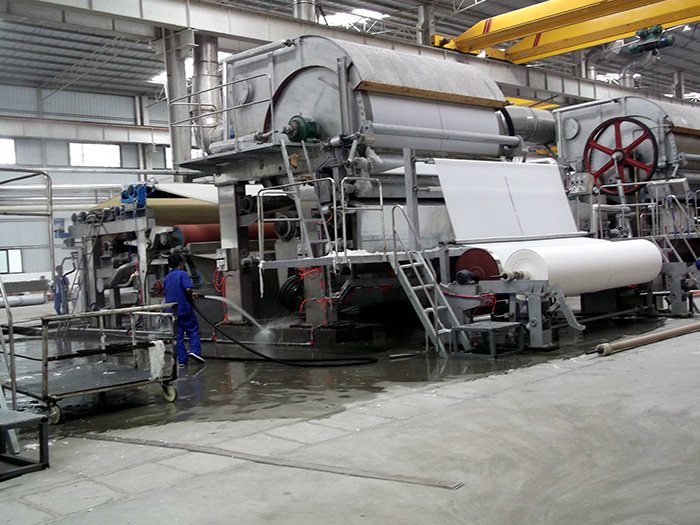

The Tissue Paper Making Machine by Qingdao Perfect Equipment is designed for efficient tissue production using waste paper, virgin wood pulp, or straw pulp as raw materials. The output tissue ranges from 13–36 GSM, ensuring flexibility for toilet tissue, facial tissue, or napkin applications.
Model | 787 | 1092 | 1575 | 1880 | 2400 | 1880C |
Production Capacity(T/D) | 1-1.5 | 2-3 | 3-5 | 5-6 | 8-9 | 15-22 |
Working speed (Meter/M) | 40-100 | 110-130 | 150-160 | 160-170 | 140-150 | 400-500 |
Output tissue paper | 13-30GSM | 13-36GSM | ||||
Raw material | Waste paper, virgin wood pulp, straw pulp etc | |||||
Machine Type | Single cylinder | crescent | ||||
Customize production is available as required output tissue paper width or production capacity | ||||||
Working thoery of the crescent tissue paper making machine : the process begins with a headbox that distributes a uniform stream of thin pulp slurry onto the forming fabric. The fabric then carries the newly formed sheet into the "crescent" nip against the felt, which is pressed against the Yankee dryer . This is a critical step for sheet formation and transfer. The sheet is then pressed and dried on the heated Yankee dryer before being creped off by a doctor blade, which gives tissue paper its characteristic softness and bulk.
