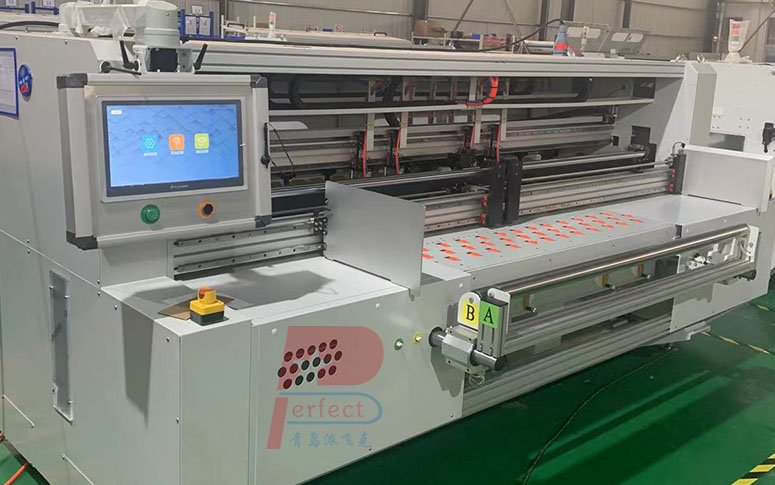

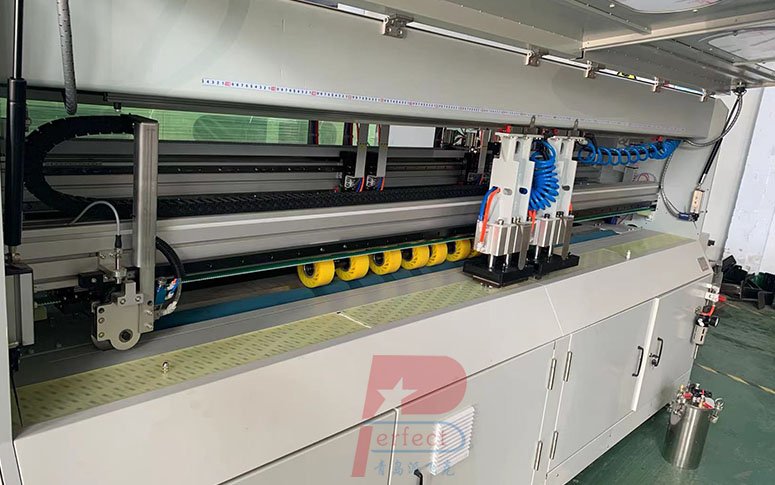

CNC Cardboard Cutting Slotting Creasing Integrated Carton Box Machine (Mold-Free Type)
This category cardboard carton making machine employs oscillating knives or milling cutters for cutting, thereby eliminating the need to manufacture any physical molds. You simply need to create the design drawings on a computer, and the machine will automatically execute all necessary processes—including cross cutting, creasing, slitting, slotting, and punching.
Representative Model Specifications (Example: Qingdao Perfect Equipment PFK-2800):
Processing Area: Max. 2800mm (Width) * Unlimited (Length)
Cardboard Thickness: 1.5–10mm (3-ply/ 5-ply/7-ply corrugated board)
Cutting Precision: ±0.1mm
Order Changeover Time: Approx. 3 seconds
Production Efficiency: 500–600 units/hour (depending on box type)

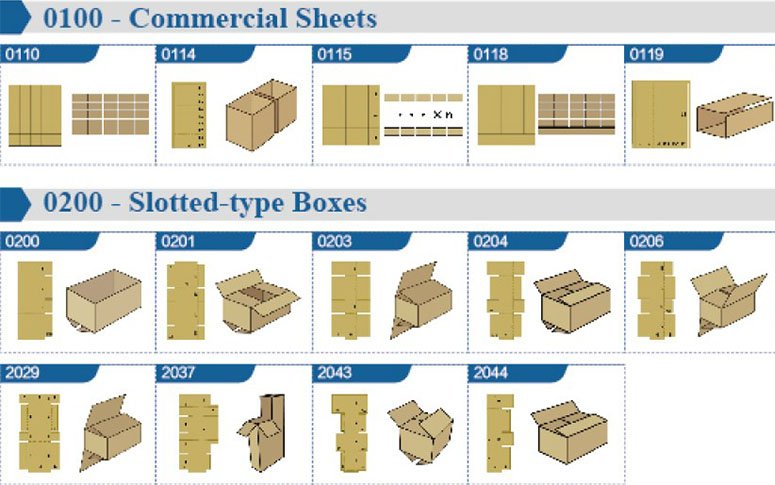

Supported Box Types: Over 100 FEFCO standard box types; fully customizable
Integrated Functions: Slotting, Slitting, Creasing, Cross-cutting, Punching, Auto-gluing (Optional), Printing (Optional)
Applicable Scenarios: Customized cardboard carton boxes, small-batch orders, and prototyping; Manufacturing of Packaging Carton Boxes for Furniture, Appliances, Building Materials, and Hardware Tools
