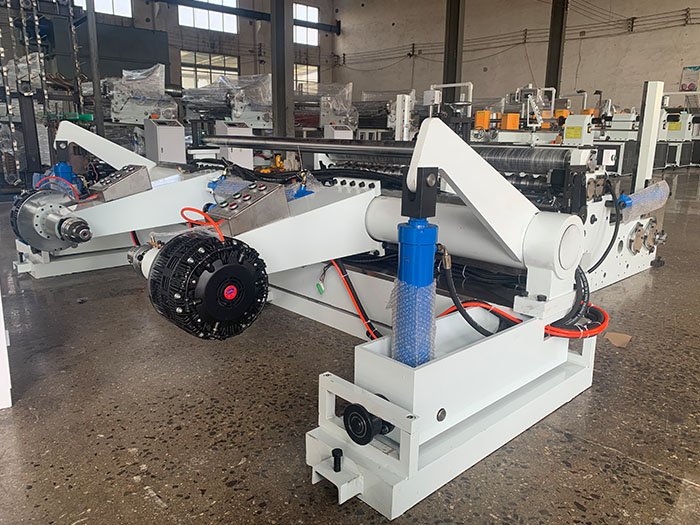

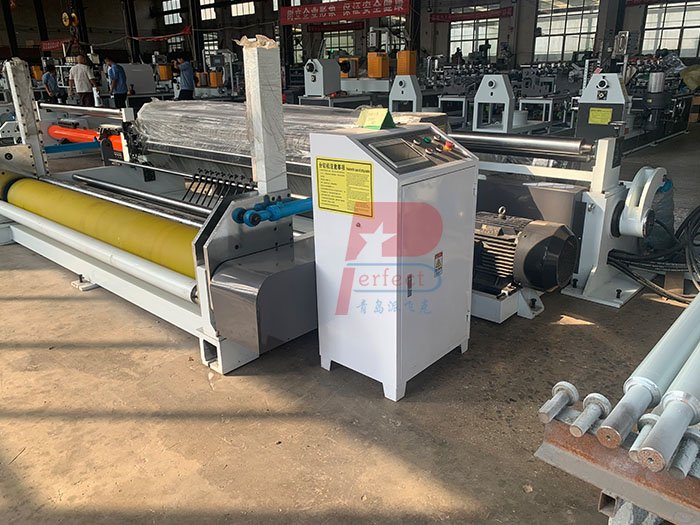

kraft paper slitting rewinding machine is designed to convert large, master rolls of kraft paper into narrower, smaller-diameter craft paper rolls ready for use in printing,craft paper bag-making, paper tube making, paper protector corner making or packaging processes.
Craft paper slitter rewinder machine operation can be broken down into three main stages:
1. Unwinding and Tension Control

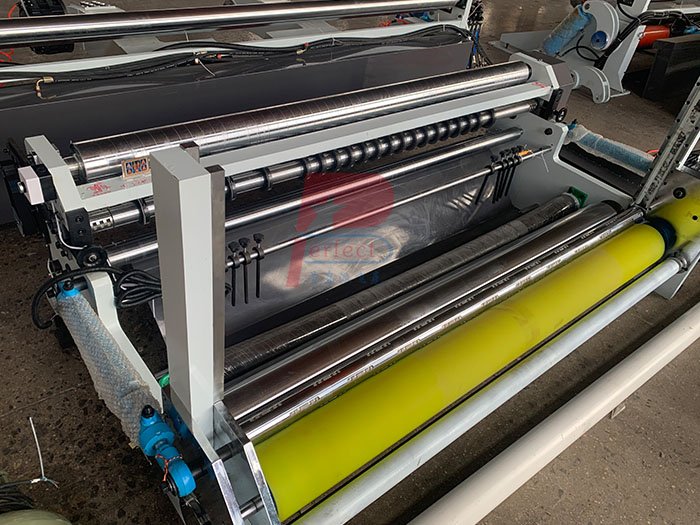

2. Precision Slitting
3. Rewinding and Separation
Parent craft paper roll width: 2000(mm)
Raw craft paper mill diameter: 1500(mm)
Rewind diameter: 1500(mm)
Slit width:>50(mm)
Basis craft paper weight: 80-600gsm
The main power: 15kw
Number of cutting blades: 21pcs
Working speed: 1-300（meters/min)
The input power: 230V-440V 50Hz 3Phases
Unwinding machine: 4400mm*1650mm*1100mm(L*W*H)
Winding machine: 3400mm*1600mm*1300mm(L*W*H)
Upper slitting blade: 1.5*105*75mm
Bottom slitting blade: 30*92*60mm
Total weight: 4400 kgs
