Our egg tray making machine and paper making machine are famous brands in China
Form 5 pieces 10 caves egg box trays per drop Installed 20 pieces egg box trays forming molds Designed capacity: 4500 pieces per hour per hour; Economic capacity: 3500-4000 pieces per hour (10 caves egg box tray, 65 GSM); The capacity varies as buyer workers operation skills and finished egg box trays GSM
Required factory workshop size for the automatic egg box tray production line: length≥60m, width≥15m; workshop for egg tray forming machine: length≥25m, width≥20m, height≥5.0m, the finished products storage warehouse must be more than 300m²
Pulp pools and water pools can be up ground or under ground, that depends on clients prefer
The water is recycled, but because it was waste water from beginning, it became dirty when it recycled several times, it needs to be changed. For water lacked area, it can install sewage disposal system for saving water cost.

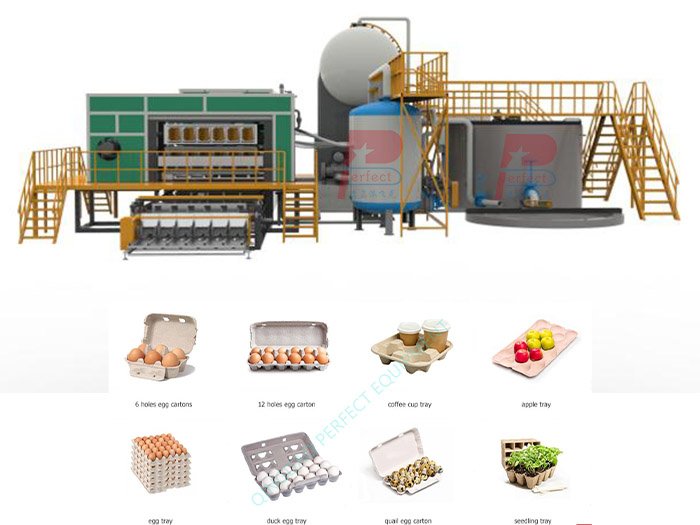

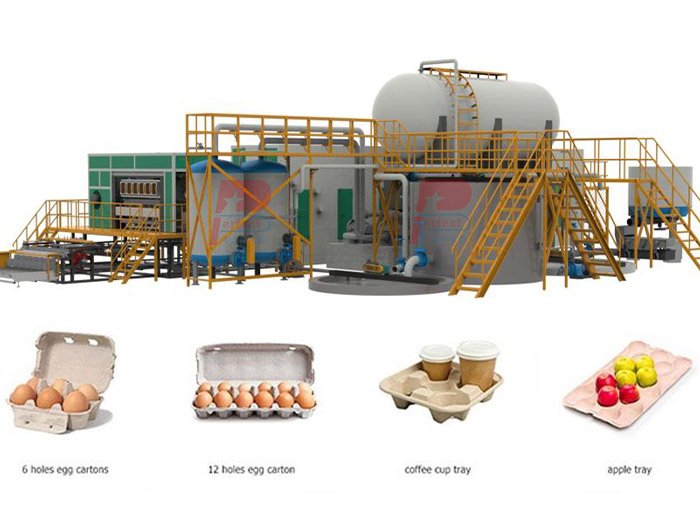

Consists of the automatic egg box tray production line:
1) Pulping system recycling waste paper old cardboard carton boxes
2) Automatic egg box tray molding machine with 10 caves egg box trays forming molds and air compressor vacuum pumps

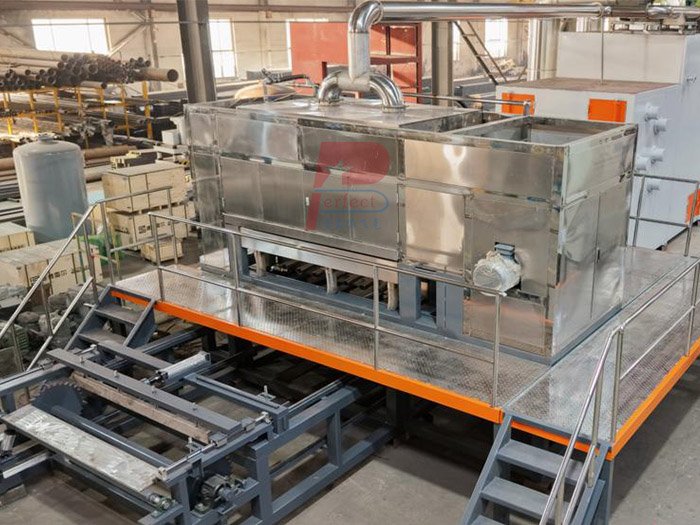

3) 6 layers metal oven dryer with Italy brand burner (heating source can be diesel,natural gas,thermal oil,steam,LPG, coal or wood chips)
4) automatic egg box tray stacker
The whole automatic egg box production line is CE quality, hydrapulper and egg tray molding machine use Siemens brand driving motor, International famous brand electric parts
Consumption details per hour for the automatic egg box tray production line
Item | Consumption per hour | |
Waste paper | A4000MA | 280-320kgs |
Water | A4000MA | 900-1000kgs (recycled) |
Natural gas | A4000MA | 80-82 cube meters (reference) |

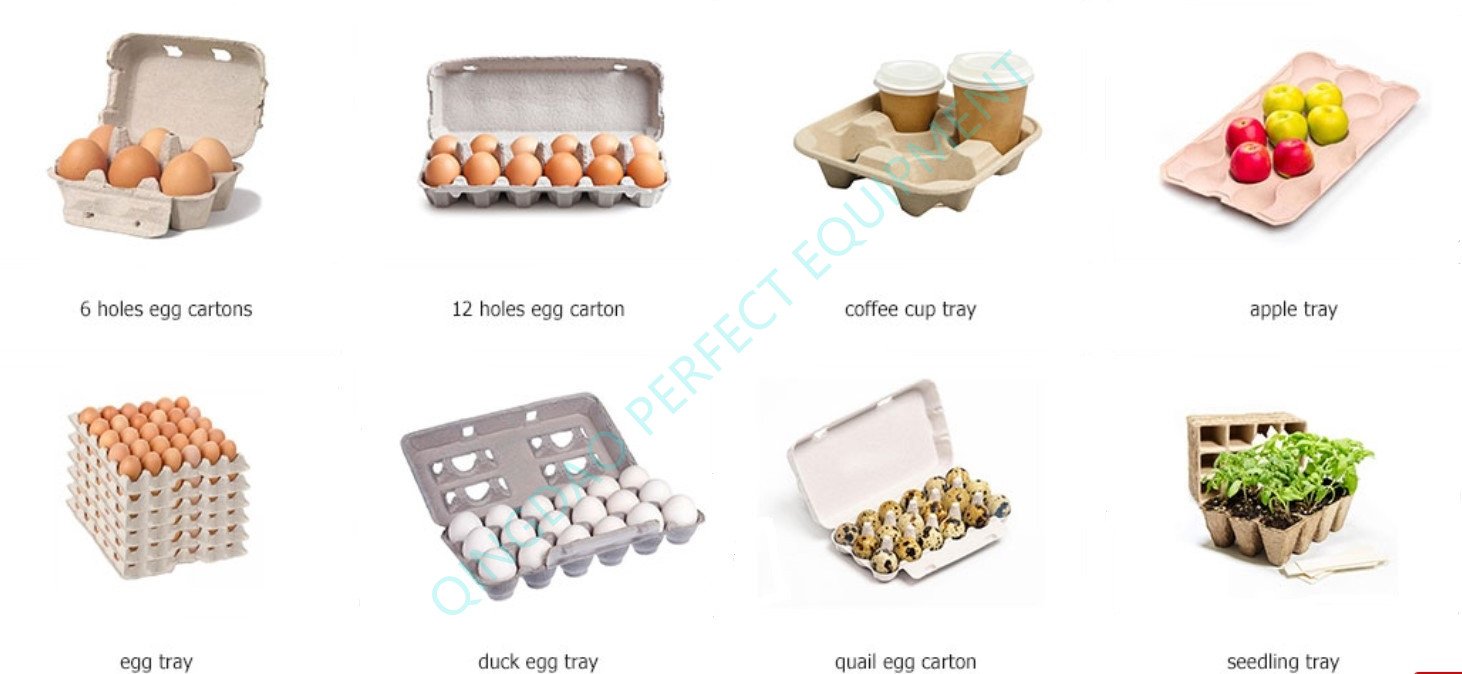

Output paper pulp packaging trays that you can produce by changing forming molds
As our egg tray making machine, carton box cardboard machine, tissue paper machines exporting to more and more countries includes USA, Russia, Spain, Ukraine, Egypt, Nigeria, Saudi Arabia, India, Australia, Philippine, Mexico, Colombia, Argentina, our machines win good reputation both in China and abroad industrial paper packaging area due to good quality first class after sales service.
