Our egg tray making machine and paper making machine are famous brands in China

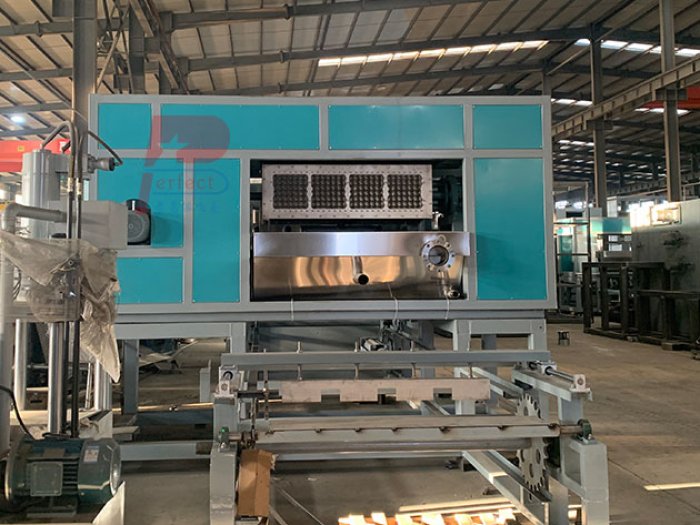

egg tray making machine automatic rotary drum vacuum pulp molding 4-8 model producing egg boxes apple trays coffee cup holder trays recycling waste paper old cardboard carton boxes popular in South America Africa
Egg tray molding making machine forming disposable paper pulp medical kidney tray apple coffee cup carrier tray apple trays
Capacity: 3800-4200 pieces/hour ( 30 caves egg tray, 70-100 GSM per PC)

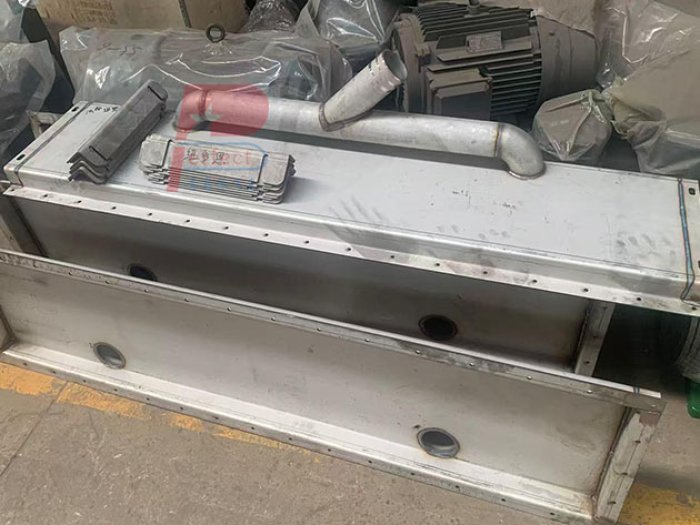

8 sides vacuum molding, each side install 4 pieces egg tray moulds, total 32 pieces aluminum forming mould
Working speed: 18-21 times/min
Egg tray making machine main parts contact with paper pulp all use SS304 stainless steel material made, use strengthen egg tray molding machine base frame
Egg tray molding making machine is used to recycle the waste paper and old carton box into paper egg tray, high working speed, matched with power saving motor, guarantee the top performance of the production.
Due to the whole production of the egg tray do not cause any pollution, all waste paper and waste water are recycled in the production process, it is a good investment for the buyers who want to recycle the waste paper and old cartons and the paper egg trays manufacturers; You can also produce other paper trays by changing moulds through this model machine, like apple tray, kidney tray, coffee cup carriers, egg boxes, plant seeding trays etc
1. Egg tray making machine output capacity: 3500-4200 pieces/hour（30 holes egg tray, 70-100 gsm per piece）

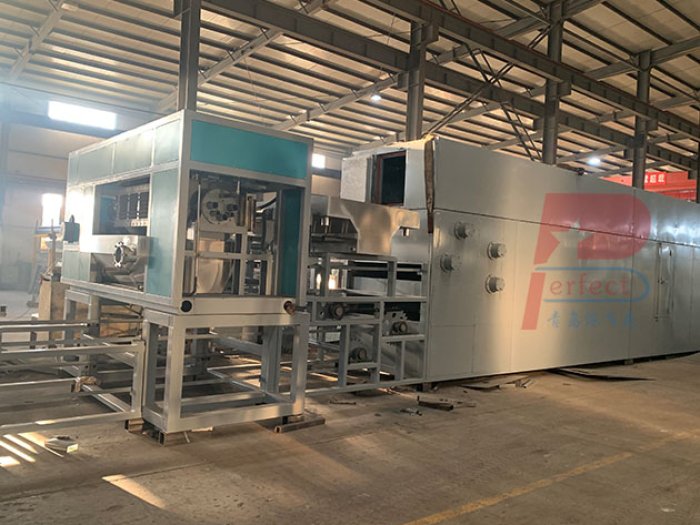

2. Workshop length for automatic egg tray production line with metal oven dryer: min 45 meter; Width: min 15 meter; Height: min 4.5 meters; Storage room: at least 200 square meters.
3. Total installation power: 380V 50Hz 3Phases 185KW real working power will be 0.7*185KW(does not include the hot press machine working power)
4. Operator: 4-5 workers per shift/ 3 shifts per day
5. The water will be recycled, water consumption is 700-800 kg/hour; Raw material: 380-410kgs/hour; Natural gas: 85-90 cube meters/hour, diesel oil 90-95kgs/hour (vary as different trays).
6. Raw material: waste paper old cardboard carton boxes, wheat rice straw fiber pulp,sugarcane bamboo fiber pulp etc

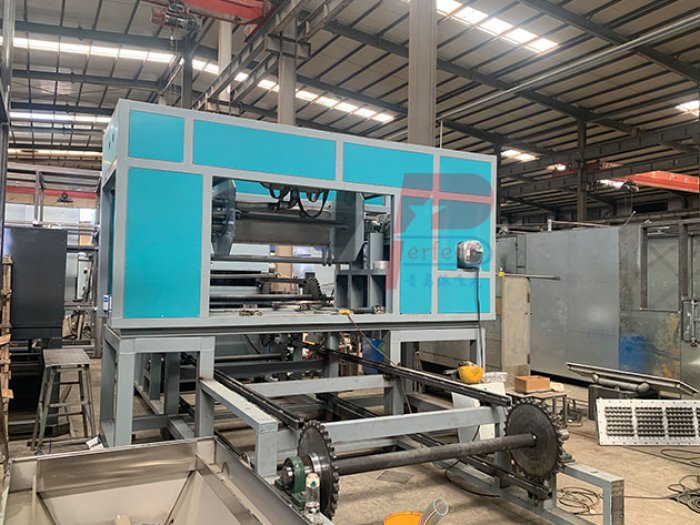

7. Egg tray drying machine: multi-layer metal oven dryer
As our egg tray making machine, carton box cardboard machine, tissue paper machines exporting to more and more countries includes USA, Russia, Spain, Ukraine, Egypt, Nigeria, Saudi Arabia, India, Australia, Philippine, Mexico, Colombia, Argentina, our machines win good reputation both in China and abroad industrial paper packaging area due to good quality first class after sales service.
