automatic square oval octagonal paper tube winding forming making machine popular in India Turkey Mexico Poland Peru Vietnam

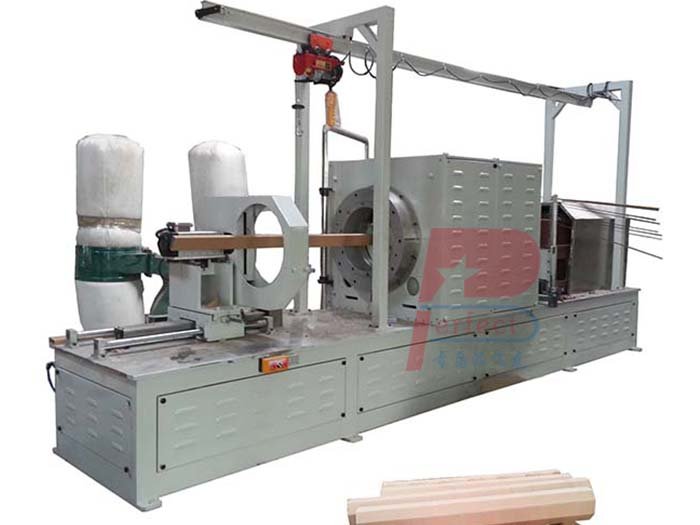

Square paper tube making machine, also known as a square paper core winding machine or edge board making machine, is an industrial device designed to automatically produce high-strength, rectangular oval square or octagonal-shaped paper tubes. These tubes are widely used as packaging edge protectors, in construction as formwork for concrete columns, and as cores for materials like textiles and films. The fundamental working principle involves four key steps: Unwinding, Gluing, Forming, and Cutting & Ejection.

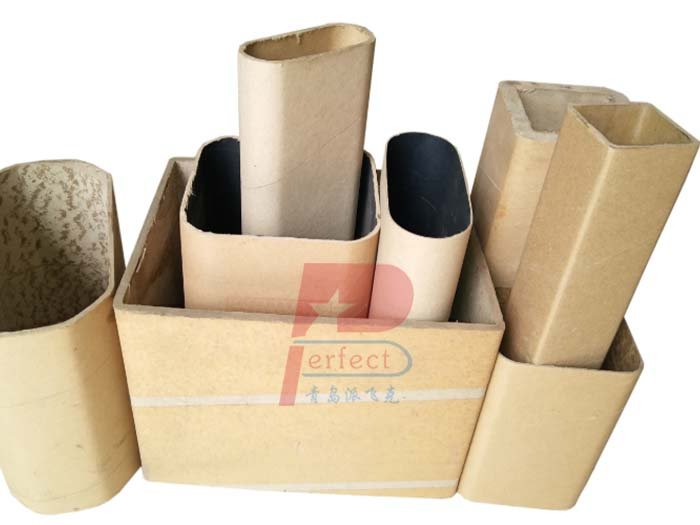

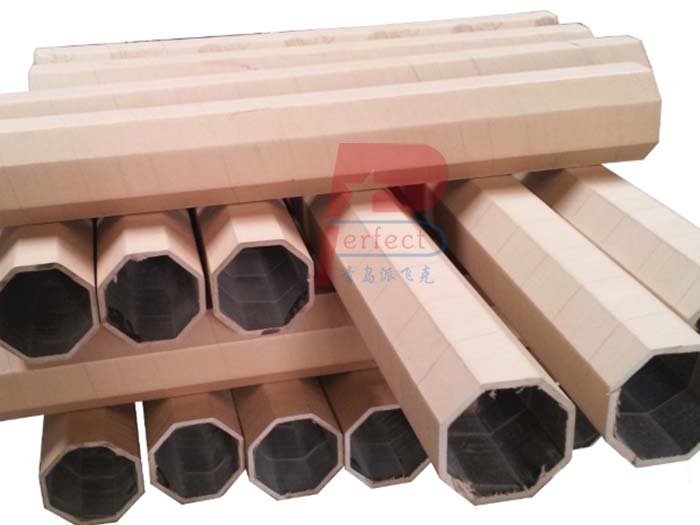

Paper tubes shapes: Square Oval Octagonal(customized)
Forming speed: 0-10 meters/min
Max gap between opposite edges: 280 mm
Min gap between opposite edges: 30 mm
Craft paper layers: 13 layers
Paper tube thickness: 2-8 mm
Cutting method: Electric saw blade
Forming pressure rollers: 2 sets
Main machine swing angle: Yes
Glue rack: 13 layers
Gluing method: Double-sided gluing
Operators:2-3 people
Input voltage: 380-440V 50-60HZ
Control system: PLC touch screen
